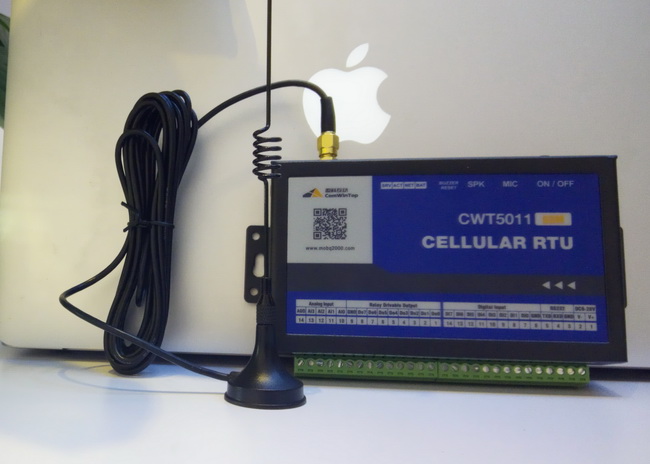

sim card machine to machine, m2m cellular gateway

System Feature

• Adopted highly integrated industrial 32-bit ARM MCU
• Double watchdog to ensure stability
• Support signal fileter
• Network-reconnect and retransmission to ensure data accurately transmit
• Automatically or manually update interior clock by sms or NTP or server
• Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
• Support Interlock programming, Event trigger
• Provide console utility for visual programming over 100 parameters
• Optional exterior rechargable battery for 8-20 hours working when power lost

DI feature

• Accept NO or NC dry contact

DO(T) feature

• Open-collector output(drive voltage=power supply voltage, Drive current≤500mA)
• on/off/pulse DO by remote control or local event
• Status memory function for power lost

DO(K) feature

• Relay NO contact output(load: 2A / 125VAC,220VDC)
• Remote or local event activate DO on/off/pulse
• Remember status when power lost

AI feature

• Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision)
• Convert 4-20mA(0-5V) to physical value
• Support offset and gain, alarm parameters, upload data setting
• Signal lost alarm

SMS feature

• Preset 10 phone numbers (support distribute authority to receive sms)
• Any device alarm status can be sent by sending sms
• All alarm and recover sms text can be edited
• Can send sms command to request any channel status or value
• Activate output by sending sms
• Sms report any IO channel’s status or value on schedule
• Remote update parameters by sms
• Sms remind for sim card overdue
• Support power lost sms alarm and recover sms(works with inside battery)

Wireless network communication

• Optianal onboard GPRS, 3g, 4g, Wi-Fi module
• Communicate with up to 4 servers(IP or domain) by TCP/IP
• Automatically Upload data when alarm or according to schedule
• Support http post, Modbus TCP, CWT protocol over cellular or Wi-Fi
• Can forward data between wireless network with RS485 or RS232

Modbus feature

• Can work as a modbus master to poll salve over RS485
• Can be a I O module to be read/write by modbus master
• As modbus to gprs/3g gateway

Wireless Remote Monitoring Solutions

Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well. Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and install.

We can interface to machines in different ways, whether it be via process signals, or serial communications, including Modbus.

Benefits of Telemetry

This ‘Internet of Things’ telemetry technology offers rapid payback, delivering operational, environmental and financial benefits, from cutting delivery miles, to reacting in good time to warnings of machinery breakdown, leakage, theft, run-outs and safety breaches.

Why choose CWT

CWT award-winning Telemetry Solutions are proven globally, in a range of sectors including chemical & petrochemical, food distribution and production, transport, water & waste, environmental and factory automation.

“We were looking for a robust telemetry system and platform to replace our infield monitoring and critical remote alarm equipment. We picked Powelectrics as our preferred supplier and Metron View as our new solution to replace all our infield remote monitoring and alarm systems. Working with the Powelectrics Team is a real breath of fresh air, they listen to our needs, help us with our challenges and provide a really robust solution. They are flexible and understanding – we are quite demanding! We wouldn’t hesitate to recommend them and their solutions – a great company to partner with for our critical system needs.” Technical Manager
