4Ai 4Ti IOT Gateway Device GSM GPRS 3G 4G With Preset 10 Phone Numbers

Product Categories

CWT(HK) Co., Limited

Contact Now

Add to Cart

CWT5016 Industrial Iot Gsm Gprs 3g 4g Gateway Data Logger With 4Di 4Do 4Ai 4Ti

Port	Qty	Features
DI (digital input)	4	Accept dry contact Can be configured as pulse counter input (counting frequency: 10Hz)
DO (digital output)	4	Transistor output (drive voltage=power supply voltage, Drive current≤500mA Remote or local event activate DO on/off/pulse Remember status when power lost
AI (analog input)	4	Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision) Convert signal to actual measure value,support adjustment Configurable parameters for signal acquisition, alarm, data communication Detect connect or disconnect to alarm
TI (temperature& Humidity input)	4	Configurable parameters for alarm (high or lower), record, data communication, adjustment Fahrenheit or centigrade units for temperature Detect probe connect or disconnect to alarm
RS232	1	Configuration port (baud rate: 1200~115200dps, default 9600,n,8,1)

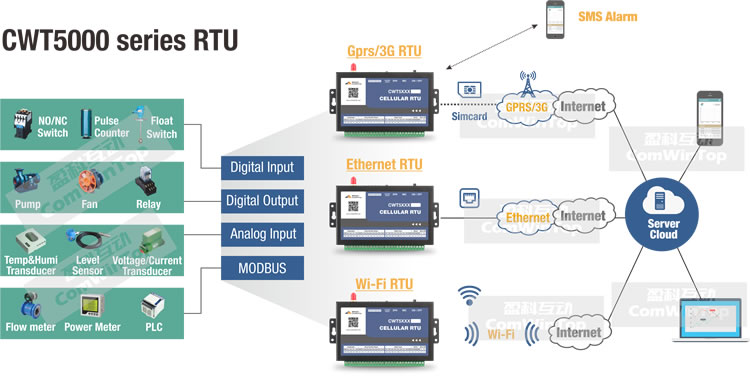

Wireless network communication

SMS Communication (available for cellular version)

Specifications

Core	MCU	Cortex M3 32-bit ARM
Power	Power supply	9-28V DC (Standard adapter: DC 12V/1.5A)
Power	Consumption	12V input Max. 150mA/Average 50mA
Network	Wireless Network	Either GPRS(or 3G/4G, need simcard) or Wi-Fi(Not need simcard) Default: GSM/GPRS (4 band 850/900/1800/1900Mhz) Option: WCDMA (3G), FDD LTE(4G) Option: Wi-Fi, 802.11 b/g security WEP/WPA/WPA2
IO channel	Digital input(DI)	8 channels, Dry contact trigger
	Digital output(DO)	8 channels, transistor output Output drive voltage=power supply DC voltage Drive current ≤500mA
	Analog Input(AI)	4 channels, receive 4-20mA(option: 0-5V), Sampling frequency: 33Hz, 10-bit precision, Dual digital filters for anti-noise
	Temp Humi Input(TI)	4 channels
Series port	RS232	1 port, baud rate: 1200~115200dps, default 9600,n,8,1
Other interface	SIM/UIM	Standard user card interface
Other interface	Antenna	Standard SMA female interface (50Ω)
Others	Battery	Optional lithium-polymer, 500mAh/3.7V,life:8-20 hours
Others	GPS module	Optional
Working Environment	temperature	-30℃～+70℃
Working Environment	humidity	5～95%(non-condensing)
Physical	Terminals	2×14pin 3.81mm spacing, pluggable
	Housing	Providing IP30 protection
	Dimension	130×80×25mm
	Weight	370g
