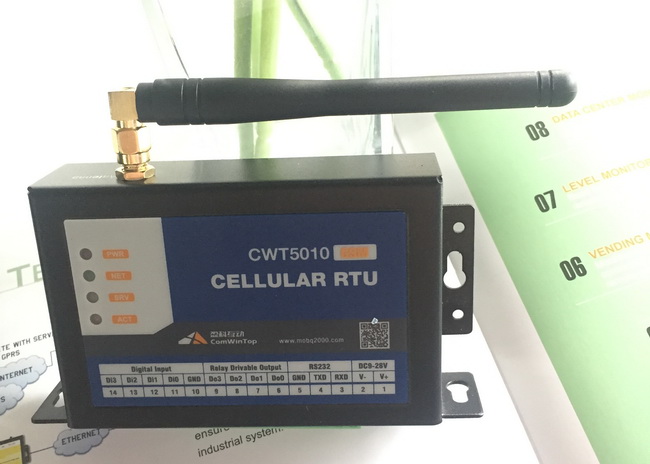

gsm rtu remote controller, sms relay switch controller

System Feature

• Adopted highly integrated industrial 32-bit ARM MCU
• 24×7 working, soft and hardware Double watchdog
• With signal filtering mechanisms
• Support automatic network reconnection and data re-send
• Automatically or manually update interior clock by sms or NTP or server
• Automatically execute preset task by schedule(second, minute, day, week, month)
• Can automatically execute tasks according to preset Events
• Provide console utility for visual programming over 100 parameters
• Optional inside lithium battery for power lost alarm and keep 8-20 hours working

DI feature

• Trigger dry contact(NO or NC)

DO(T) feature

• Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
• Remote or local event activate DO on/off/pulse
• Remember status when power lost

DO(K) feature

• Relay output(NO, contact load: 2A / 125VAC,220VDC)
• DO can be activated by remote or local schedule
• Remain down status when power lost

AI feature

• Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision)
• Transduce 4-20mA(0-5V) to actual value
• Configurable parameters for signal acquisition, alarm, data communication
• Sensor disconnect alarm

SMS feature

• Can add 10 administrator numbers for alarm and remote control
• Send sms alarm when input is triggered or reach alarm level
• Editable alarm and recover sms with time stamp
• Can send sms command to request any channel status or value
• Activate output by sending sms
• Can set interval to report IO channel's status or value by sms
• Remote setting via sms commands
• Can query SIM card balance, sms forward
• Power lost and recover alarm by sending sms

Wireless network communication

• Option network: cellular(2g/3g/4g) or Wi-Fi
• TCP/IP connect at most 4 servers(support Static IP address or domain)
• Support post or respond mode for data communication
• Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol
• Transfer RS485 or RS232 Data to wireless network

Wireless Remote Monitoring Solutions

Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well. Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and install.

We can interface to machines in different ways, whether it be via process signals, or serial communications, including Modbus.

Benefits of Telemetry

This ‘Internet of Things’ telemetry technology offers rapid payback, delivering operational, environmental and financial benefits, from cutting delivery miles, to reacting in good time to warnings of machinery breakdown, leakage, theft, run-outs and safety breaches.

Why choose CWT

CWT award-winning Telemetry Solutions are proven globally, in a range of sectors including chemical & petrochemical, food distribution and production, transport, water & waste, environmental and factory automation.
