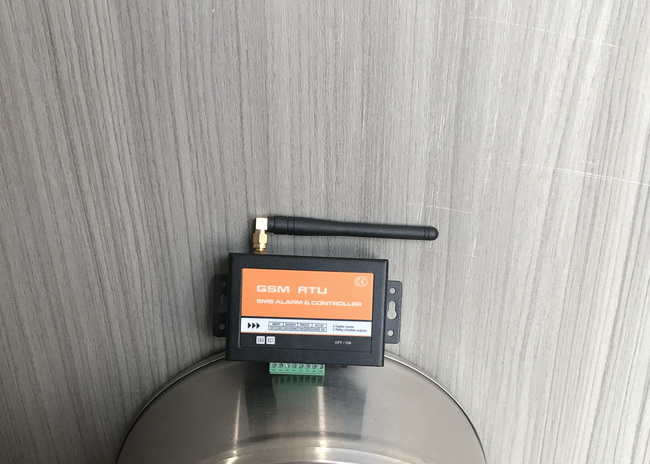

CWT5005A Professional DIY IOT Gateway Device for Industrial Application

CWT5005A RTU with 2 DI, 2 DO, RS232 standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches.

System Feature

• Industrial NXP 32-bit ARM MCU
• Reliable performance with built-in double watchdog, 24×7 operation
• With signal filtering mechanisms
• Stable reconnection strategy for data transmit
• Synchronize clock with multiple way, Sms, NTP, CwtIO Server
• Configurable action schedule(second, minute, day, week, month)
• Can automatically execute tasks according to preset Events
• Provide configure software, visual programming, over 100 parameters can be set
• Optional exterior rechargable battery for 8-20 hours working when power lost

DI feature

• Monitor dry contact(NO or NC)

DO(T) feature

• Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
• on/off/pulse DO by remote control or local event
• Remain down status when power lost

DO(K) feature

• Relay NO contact output(load: 2A / 125VAC,220VDC)
• Remote or local event activate DO on/off/pulse
• Status memory function for power lost

SMS feature

• Can add 10 administrator numbers for alarm and remote control
• Sms alarm when any IO channel triggered or out of preset normal range
• Customizable sms messages, like alarm, receove, report
• Remote get device status or value by sending sms command
• Activate output by sending sms
• Sms report any IO channel’s status or value on schedule
• Remote update parameters by sms
• Sms remind for sim card overdue
• Sms alar for power lost and recover
• Wireless network communication
• Optianal onboard GPRS, 3g, 4g, Wi-Fi module
• Communicate with up to 4 servers(IP or domain) by TCP/IP
• Support post or respond mode for data communication
• Communication protocol: Modbus TCP,http post, Cwt_IO(two-way communication)
• Can forward data between wireless network with RS485 or RS232

Wireless Remote Monitoring Solutions

Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well. Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and install.

We can interface to machines in different ways, whether it be via process signals, or serial communications, including Modbus.

Benefits of Telemetry

This ‘Internet of Things’ telemetry technology offers rapid payback, delivering operational, environmental and financial benefits, from cutting delivery miles, to reacting in good time to warnings of machinery breakdown, leakage, theft, run-outs and safety breaches.

Why choose CWT

CWT award-winning Telemetry Solutions are proven globally, in a range of sectors including chemical & petrochemical, food distribution and production, transport, water & waste, environmental and factory automation.
