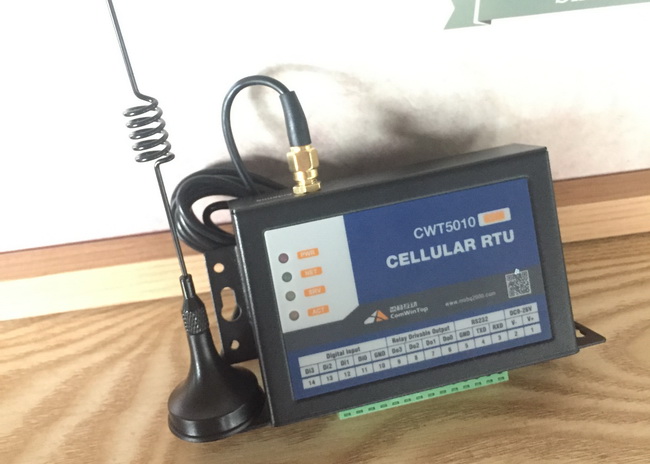

gsm remote terminal unit, gsm rtu controller

System Feature

• Industrial NXP 32-bit ARM MCU
• Double watchdog to ensure stability
• With signal filtering mechanisms
• Support automatic network reconnection and data re-send
• Synchronize clock with multiple way, Sms, NTP, CwtIO Server
• Configurable action schedule(second, minute, day, week, month)
• Event-based linkage programming, e.g. alarm linkage output
• Provide console utility for visual programming over 100 parameters
• Optional inside lithium battery for power lost alarm and keep 8-20 hours working

DI feature

• Trigger dry contact(NO or NC)

DO(T) feature

• Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
• on/off/pulse DO by remote control or local event
• Status memory function for power lost

DO(K) feature

• Relay output(NO, contact load: 2A / 125VAC,220VDC)
• on/off/pulse DO by remote control or local event
• Remain down status when power lost

AI feature

• 4-20mA (option: 0-5V) in, Sampling frequency: 33Hz, 10-bit precision)
• Convert signal to actual measure value,support adjustment
• Support offset and gain, alarm parameters, upload data setting
• Detect connect or disconnect to alarm

SMS feature

• Can add 10 administrator numbers for alarm and remote control
• Send sms alarm when input is triggered or reach alarm level
• All alarm and recover sms text can be edited
• Remote get device status or value by sending sms command
• Control output via sms command
• Configurable schedule for sms report IO channel's status or value
• Remote update parameters by sms
• Forward simcard overdue sms to admin
• Sms alar for power lost and recover

Wireless network communication

• Option network: cellular(2g/3g/4g) or Wi-Fi
• Communicate with up to 4 servers(IP or domain) by TCP/IP
• Support post or respond mode for data communication
• Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol
• Support two-way data transparent transmission with RS485 or RS232

Wireless Remote Monitoring Solutions

Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well. Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and install.

We can interface to machines in different ways, whether it be via process signals, or serial communications, including Modbus.

Benefits of Telemetry

This ‘Internet of Things’ telemetry technology offers rapid payback, delivering operational, environmental and financial benefits, from cutting delivery miles, to reacting in good time to warnings of machinery breakdown, leakage, theft, run-outs and safety breaches.

Why choose CWT

CWT award-winning Telemetry Solutions are proven globally, in a range of sectors including chemical & petrochemical, food distribution and production, transport, water & waste, environmental and factory automation.

“We were looking for a robust telemetry system and platform to replace our infield monitoring and critical remote alarm equipment. We picked Powelectrics as our preferred supplier and Metron View as our new solution to replace all our infield remote monitoring and alarm systems. Working with the Powelectrics Team is a real breath of fresh air, they listen to our needs, help us with our challenges and provide a really robust solution. They are flexible and understanding – we are quite demanding! We wouldn’t hesitate to recommend them and their solutions – a great company to partner with for our critical system needs.” Technical Manager
